Introduction
BOSH is an open source project from Cloud Foundry that allow release engineering, software deployment and application lifecycle management of large scale and distributed system.
I wanted to take a look at it and fortunately it is possible to play on a local playground environment on VirtualBox using the bosh-lite instruction.
Not so easy
As I’m using Arch Linux, let’s install VirtualBox and Bosh-Cli(aur).
First clone the bosh-deployment repo:
$ git clone https://github.com/cloudfoundry/bosh-deployment.git bosh-deployment
Then create the Bosh environment, using the quite long create-env command:
$ bosh create-env ./bosh-deployment/bosh.yml \
--state ./state.json \
-o ./bosh-deployment/virtualbox/cpi.yml \
-o ./bosh-deployment/virtualbox/outbound-network.yml \
-o ./bosh-deployment/bosh-lite.yml \
-o ./bosh-deployment/bosh-lite-runc.yml \
-o ./bosh-deployment/uaa.yml \
-o ./bosh-deployment/credhub.yml \
-o ./bosh-deployment/jumpbox-user.yml \
--vars-store ./creds.yml \
-v director_name=bosh-lite \
-v internal_ip=192.168.56.6 \
-v internal_gw=192.168.56.1 \
-v internal_cidr=192.168.56.0/24 \
-v outbound_network_name=NatNetwork
So far so good
<...>
Started validating
Downloading release 'bosh'... Skipped [Found in local cache] (00:00:00)
Validating release 'bosh'... Finished (00:00:00)
Downloading release 'bpm'... Skipped [Found in local cache] (00:00:00)
Validating release 'bpm'... Finished (00:00:00)
Downloading release 'bosh-virtualbox-cpi'... Skipped [Found in local cache] (00:00:00)
Validating release 'bosh-virtualbox-cpi'... Finished (00:00:03)
Downloading release 'garden-runc'... Skipped [Found in local cache] (00:00:00)
Validating release 'garden-runc'... Finished (00:00:01)
Downloading release 'bosh-warden-cpi'... Skipped [Found in local cache] (00:00:00)
Validating release 'bosh-warden-cpi'... Finished (00:00:00)
Downloading release 'os-conf'... Skipped [Found in local cache] (00:00:00)
Validating release 'os-conf'... Finished (00:00:00)
Downloading release 'uaa'... Skipped [Found in local cache] (00:00:00)
Validating release 'uaa'... Finished (00:00:01)
Downloading release 'credhub'... Skipped [Found in local cache] (00:00:00)
Validating release 'credhub'... Finished (00:00:00)
Validating cpi release... Finished (00:00:00)
Validating deployment manifest... Finished (00:00:00)
Downloading stemcell... Skipped [Found in local cache] (00:00:00)
Validating stemcell... Finished (00:00:05)
Finished validating (00:00:19)
Started installing CPI
Compiling package 'golang-1-linux/79f531850e62e3801f1dfa4acd11c421aebe653cd4316f6e49061818071bb617'... Finished (00:00:16)
Compiling package 'golang-1-darwin/42353203720fdc244cc16f881167bb0363f38ff6f991247c4356e38bc6b5fb81'... Finished (00:00:17)
Compiling package 'virtualbox_cpi/80aa8cbfaa414f488b4f7821397f42edea6473638e50154b20db3f1ddf234b83'...
But after less than 2 minutes, it panicked while trying to get the VirtualBox version.
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Stderr:
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Successful: true (0)
[driver.LocalRunner] 2024/11/25 14:34:02 DEBUG - Execute 'VBoxManage --version'
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Running command 'VBoxManage --version'
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Stdout: WARNING: Environment variable LOGNAME or USER does not correspond to effective user id.
7.1.4r165100
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Stderr:
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Successful: true (0)
panic: Internal inconsistency: Expected len(Interface '(.+)' was successfully created matches) >= 3:
goroutine 1 [running]:
bosh-virtualbox-cpi/vm/network.Networks.getVboxVersion({{0x6fd610, 0xc0000b2aa0}, {0x702b28, 0xc000190060}})
/home/fs/.bosh/installations/8a86c2ee-8dce-477f-6ddf-cde281d5c02d/tmp/bosh-release-pkg2644627013/bosh-virtualbox-cpi/vm/network/system_info.go:61 +0x159
bosh-virtualbox-cpi/vm/network.Networks.NewSystemInfo({{0x6fd610, 0xc0000b2aa0}, {0x702b28, 0xc000190060}})
/home/fs/.bosh/installations/8a86c2ee-8dce-477f-6ddf-cde281d5c02d/tmp/bosh-release-pkg2644627013/bosh-virtualbox-cpi/vm/network/system_info.go:18 +0x4c
<...>
And a 2 months issue is already opened.
Let’s fix it
What is the problem ?
So, here is the faulty function, from bosh-virtualbox-cpi-release repo in src/bosh-virtualbox-cpi/vm/network/system_info.go:
func (n Networks) getVboxVersion() (string, string, error) {
output, err := n.driver.Execute("--version")
if err != nil {
return "", "", err
}
output = strings.TrimSpace(output)
matches := strings.Split(output, ".")
if len(matches) > 3 {
panic(fmt.Sprintf("Internal inconsistency: Expected len(%s matches) >= 3:", createdHostOnlyMatch))
}
return matches[0], matches[1], nil
}
Indeed, we can see the output contains a long warning line that ends with a dot. Therefore the split function returns 4 elements.
[Cmd Runner] 2024/11/25 14:34:02 DEBUG - Stdout: WARNING: Environment variable LOGNAME or USER does not correspond to effective user id.
7.1.4r165100
Is it reproducible ?
$ export LOGNAME=bla
$ VBoxManage --version
WARNING: Environment variable LOGNAME or USER does not correspond to effective user id.
7.1.4r165100
$ VBoxManage
WARNING: Environment variable LOGNAME or USER does not correspond to effective user id.
Oracle VirtualBox Command Line Management Interface Version 7.1.4
Copyright (C) 2005-2024 Oracle and/or its affiliates
Usage - Oracle VirtualBox command-line interface:
VBoxManage [-q | --nologo] [--settingspw=password] [--settingspwfile=pw-file] [@response-file] [subcommand]
VBoxManage help [subcommand]
VBoxManage commands
VBoxManage [-V | --version]
<...>
Indeed, and it show this extra warning on any command, even when displaying usage help.
To avoid to check this in all instances of n.driver.Execute, let’s patch the Execute function itself.
func (d ExecDriver) Execute(args ...string) (string, error) {
output, error := d.ExecuteComplex(args, ExecuteOpts{})
if strings.HasPrefix(output, "WARNING:") { // cut the first WARNING line if present
output = output[len(strings.Split(output, "\n")[0]):]
}
return output, error
}
But before I can try again, I need to create a release and update the deployment to use it.
Create a Bosh release
That looks easy, just use the create-release
$ bosh create-release --force --tarball=~/tmp/vbox-cpi-test.tgz
-- Started downloading 'golang-1-darwin/42353203720fdc244cc16f881167bb0363f38ff6f991247c4356e38bc6b5fb81' (sha1=sha256:ad0052d2c45bf20672f58ed4d15c368554014632e8c051033f5b0caacd025237)
-- Started downloading 'guest-additions/8c4bb0eb2604cd2ec71c3ee0c4349d26b1da64635fbbfc61fdb4eccddee9f35a' (sha1=sha256:31fb7d6cd62a235d52b27ce73fa03edbdc5750f75f49432edd936b7c957029ac)
-- Started downloading 'golang-1-linux/79f531850e62e3801f1dfa4acd11c421aebe653cd4316f6e49061818071bb617' (sha1=sha256:329aecaedd48d3ca6d3e5cd1f66e626e5b93fda0664770dda698d5498e82a5d3)
-- Started downloading 'virtualbox_cpi/d4f4a419067339daecb3cb3e023ae3bd692a094cd7804d2febe5eb231261378e' (sha1=sha256:dbb6b3b955f7ea9c07be8a564e004297f8b757c028ebdc74e359d996a62745d4)
-- Started downloading 'virtualbox_cpi/80aa8cbfaa414f488b4f7821397f42edea6473638e50154b20db3f1ddf234b83' (sha1=sha256:25d5b825113e7b5ef91b4e76d3b99618d7d41991952a3940a581f2a96fc03dea)
-- Failed downloading 'golang-1-darwin/42353203720fdc244cc16f881167bb0363f38ff6f991247c4356e38bc6b5fb81' (sha1=sha256:ad0052d2c45bf20672f58ed4d15c368554014632e8c051033f5b0caacd025237)
<...>
Building a release from directory '/home/fs/tmp/bosh-virtualbox-cpi-release':
- Downloading blob 'e984d783-46bd-47c5-4cd2-1fb653a1e702' with digest string 'sha256:ad0052d2c45bf20672f58ed4d15c368554014632e8c051033f5b0caacd025237':
Getting blob from inner blobstore:
Checking downloaded blob 'e984d783-46bd-47c5-4cd2-1fb653a1e702':
Expected stream to have digest 'sha256:ad0052d2c45bf20672f58ed4d15c368554014632e8c051033f5b0caacd025237' but was 'sha256:2665bfdba2584e95a145a323afa69e8ed2c71c26ec45186dbe914cb7c1d60ed9'
<...>
But once again it is not that easy. The problem is that the repo uses Git Large File Storage. So let’s install git-lfs and install it on the repo
$ git lfs install
$ git lfs pull
Try again, and voila, the tgz release.
$ bosh create-release --force --tarball=~/tmp/vbox-cpi-test.tgz
<...>
Added dev release 'bosh-virtualbox-cpi/0.5.0+dev.6'
Name bosh-virtualbox-cpi
Version 0.5.0+dev.6
Commit Hash dcc799b+
Archive /home/fs/tmp/vbox-cpi-test.tgz
Job Digest Packages
guest-additions/8c4bb0eb2604cd2ec71c3ee0c4349d26b1da64635fbbfc61fdb4eccddee9f35a sha256:31fb7d6cd62a235d52b27ce73fa03edbdc5750f75f49432edd936b7c957029ac -
virtualbox_cpi/d4f4a419067339daecb3cb3e023ae3bd692a094cd7804d2febe5eb231261378e sha256:dbb6b3b955f7ea9c07be8a564e004297f8b757c028ebdc74e359d996a62745d4 virtualbox_cpi
2 jobs
Package Digest Dependencies
golang-1-darwin/42353203720fdc244cc16f881167bb0363f38ff6f991247c4356e38bc6b5fb81 sha256:ad0052d2c45bf20672f58ed4d15c368554014632e8c051033f5b0caacd025237 -
golang-1-linux/79f531850e62e3801f1dfa4acd11c421aebe653cd4316f6e49061818071bb617 sha256:329aecaedd48d3ca6d3e5cd1f66e626e5b93fda0664770dda698d5498e82a5d3 -
virtualbox_cpi/f7ac5a02effd72ac4c1d1d0e53722443bc22f0692063564d5ddb6025310b03e8 sha256:23e222d9b92efa5e32741601f2251b5ee57fd37683131a3495dcbd6434d2bd15 golang-1-darwin
golang-1-linux
3 packages
Succeeded
And try again
Now I have my vbox-cpi-test.tgz release, let’s update the bosh-deployment/virtualbox/cpi.yml to test it.
- name: cpi
path: /releases/-
type: replace
value:
name: bosh-virtualbox-cpi
url: file:///home/fs/tmp/vbox-cpi-test.tgz
That’s look better
<...>
Uploading stemcell 'bosh-vsphere-esxi-ubuntu-jammy-go_agent/1.639'... Finished (00:00:20)
Started deploying
Creating VM for instance 'bosh/0' from stemcell 'sc-134454b8-442c-49b9-48d6-c5b52c9c4cb7'... Finished (00:00:02)
Waiting for the agent on VM 'vm-326e4746-1005-4c29-6824-8255b6106696' to be ready...
And after less than 10 minutes it completed successfully.
<...>
Compiling package 'grootfs/4ec1e6a649cb2f3012ebb52b56f7892bd21521a8298afe658cc28430ca4354e4'... Skipped [Package already compiled] (00:00:00)
Compiling package 'credhub/ccbb941ebc15f45f6248efa1b40194707c3155a7eb7e2ae99179d54233d3609f'... Skipped [Package already compiled] (00:00:00)
Compiling package 'nginx/0520ac9ce5ea4ac2bf4e1daa650bb3c41b1156498247d01fbb4ba0a28d580b23'... Skipped [Package already compiled] (00:00:00)
Compiling package 'bosh-gcscli/412eb42fcc4b8631620eb43ef09c6c126e103949ea5ae82812f5548d36e9770c'... Skipped [Package already compiled] (00:00:00)
Updating instance 'bosh/0'... Finished (00:01:27)
Waiting for instance 'bosh/0' to be running... Finished (00:02:42)
Running the post-start scripts 'bosh/0'... Finished (00:00:01)
Finished deploying (00:06:22)
Cleaning up rendered CPI jobs... Finished (00:00:00)
Succeeded
Just setup the environment
$ export BOSH_CLIENT=admin
$ export BOSH_CLIENT_SECRET=`bosh int ./creds.yml --path /admin_password`
$ bosh alias-env vbox -e 192.168.56.6 --ca-cert <(bosh int ./creds.yml --path /director_ssl/ca)
Name bosh-lite
UUID 1f6e7843-bb32-4353-a666-c9a89a082e4f
Version 280.1.10 (00000000)
Director Stemcell -/1.639
CPI warden_cpi
Features config_server: enabled
local_dns: enabled
snapshots: disabled
User admin
Succeeded

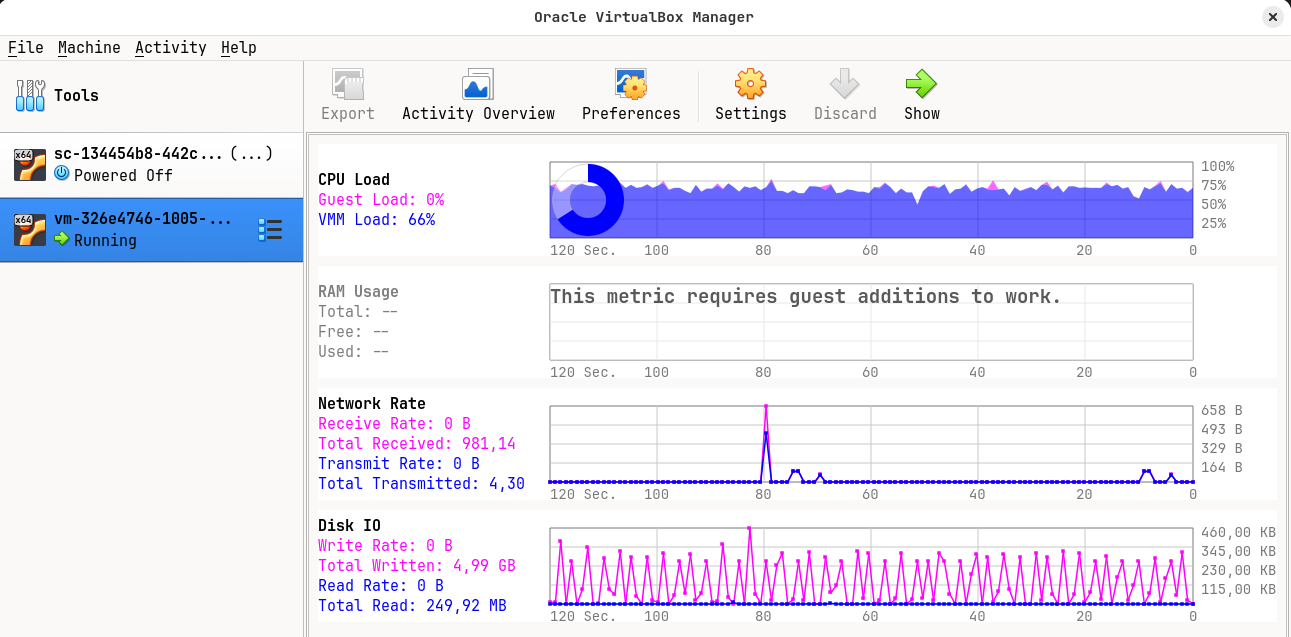

Now I have a bosh director VM running on my VirtualBox, but I notice it have a constent CPU load, for a 4 CPUs VM.
Conclusion
Now That I have a working solution, commit it and push it to my forked repo and create a PR
Then let’s deploy the Zookeeper deployment as explained in the guide
$ bosh -e vbox \
-d zookeeper \
deploy <(curl -qs https://raw.githubusercontent.com/cppforlife/zookeeper-release/master/manifests/zookeeper.yml)
Oh no ….
<...>
Task 3 | 15:25:27 | Creating missing vms: zookeeper/53330f7d-0ccd-4c30-847f-0a26a763ec74 (3) (00:00:10)
Task 3 | 15:25:27 | Creating missing vms: zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd (0) (00:00:10)
Task 3 | 15:25:28 | Creating missing vms: zookeeper/2a7b26ba-1eea-4e6e-8b4d-2729bf825ae6 (2) (00:00:11)
Task 3 | 15:25:28 | Updating instance zookeeper: zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd (0) (canary)
Task 3 | 15:25:29 | L executing pre-stop: zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd (0) (canary)
Task 3 | 15:25:29 | L executing drain: zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd (0) (canary)
Task 3 | 15:25:30 | L stopping jobs: zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd (0) (canary) (00:03:48)
L Error: Timed out sending 'get_task' to instance: 'zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd', agent-id: '8c8072c2-877a-4d1a-b39e-00d61f887760' after 45 seconds
Task 3 | 15:29:16 | Error: Timed out sending 'get_task' to instance: 'zookeeper/f7edbcb7-f7ef-40f5-80e0-5c5c1086f1fd', agent-id: '8c8072c2-877a-4d1a-b39e-00d61f887760' after 45 seconds
Task 3 Started Mon Nov 25 15:23:13 UTC 2024
Task 3 Finished Mon Nov 25 15:29:16 UTC 2024
Task 3 Duration 00:06:03
Task 3 error
Updating deployment:
Expected task '3' to succeed but state is 'error'
Exit code 1
